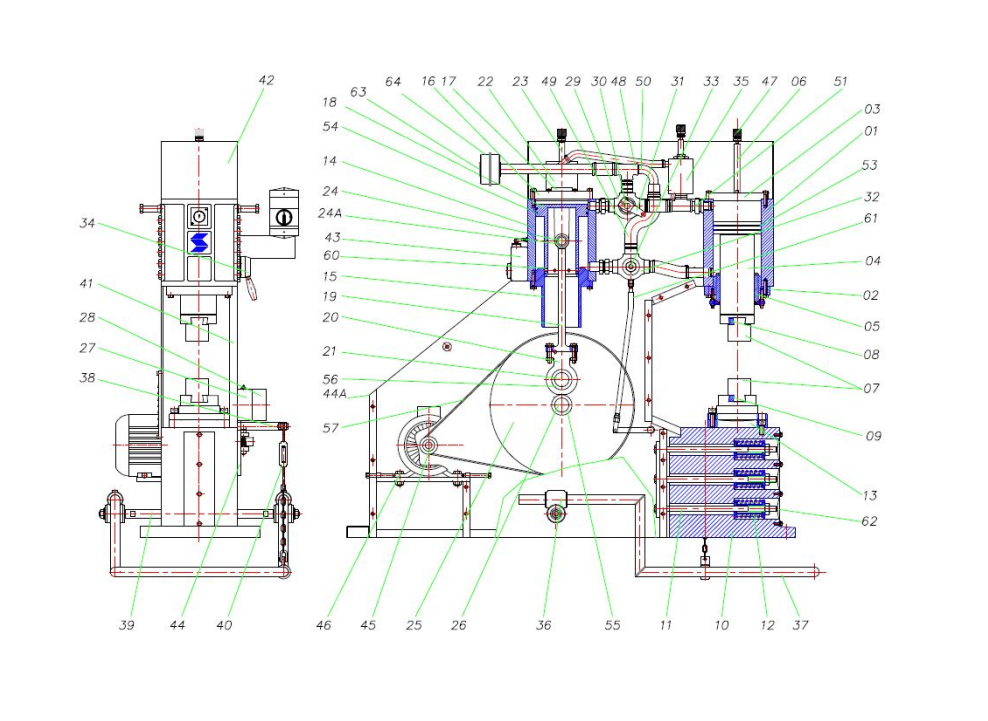

| Part Number |
Description
|
Part Number |
Description |
| 1 |
Die Seat |
32 |
Oil Tap |
| 2 |
Die key |
33 |
Oil reservoir |
| 3 |
Bottom die |
34 |
Back cylinder
|
| 4 |
Top die |
35 |
Back piston
|
| 5 |
Front piston |
36 |
Back cylinder neck
|
| 6 |
Top die key |
37 |
Back cylinder neck nut
|
| 7 |
Front cylinder neck |
38 |
Crank arm
|
| 8 |
Assembly bolt |
39 |
Crank cylinder housing
|
| 9 |
Front piston bronze key |
40 |
Crank shaft
|
| 10 |
Front cylinder |
41 |
Flywheel
|
| 11 |
Front piston metal ring
|
42 |
Motor belt
|
| 12 |
Cylinder cap assembly bolt
|
43 |
Motor
|
| 13 |
Cylinder cap
|
44 |
Exhaust
|
| 14 |
Ram adjusting ball
|
45 |
Anvil
|
| 15 |
Ram adjusting valve
|
46 |
Anvil nut
|
| 16 |
Ram adjusting valve nut
|
47 |
Anvil spring
|
| 17 |
Spring
|
48 |
Anvil bolt
|
| 18 |
Pipe
|
49 |
Back cover bolt
|
| 19 |
Top valve
|
50 |
Electric box
|
| 20 |
Top valve housing
|
51 |
Spring washer
|
| 21 |
Bottom valve (A-B)
|
52 |
Top cover seal
|
| 22 |
Bottom valve housing (A-B)
|
53 |
O-Ring
|
| 23 |
Plastic hose
|
54 |
Seal
|
| 24 |
Air exhaust bolt
|
55 |
Back piston spring
|
| 25 |
Back cylinder cap
|
56 |
Oil Cap
|
| 26 |
Air intake adjustment valve
|
57 |
Oil gauge
|
| 27 |
Bolt
|
58 |
Belt tensioner
|
| 28 |
Air ıntake adjustment bolt
|
59 |
1306 ball bearing
|
| 29 |
Back piston metal ring
|
60 |
30210 conical bearing
|
| 30 |
Oil adjustment ball
|
61 |
|
| 31 |
Spring
|
