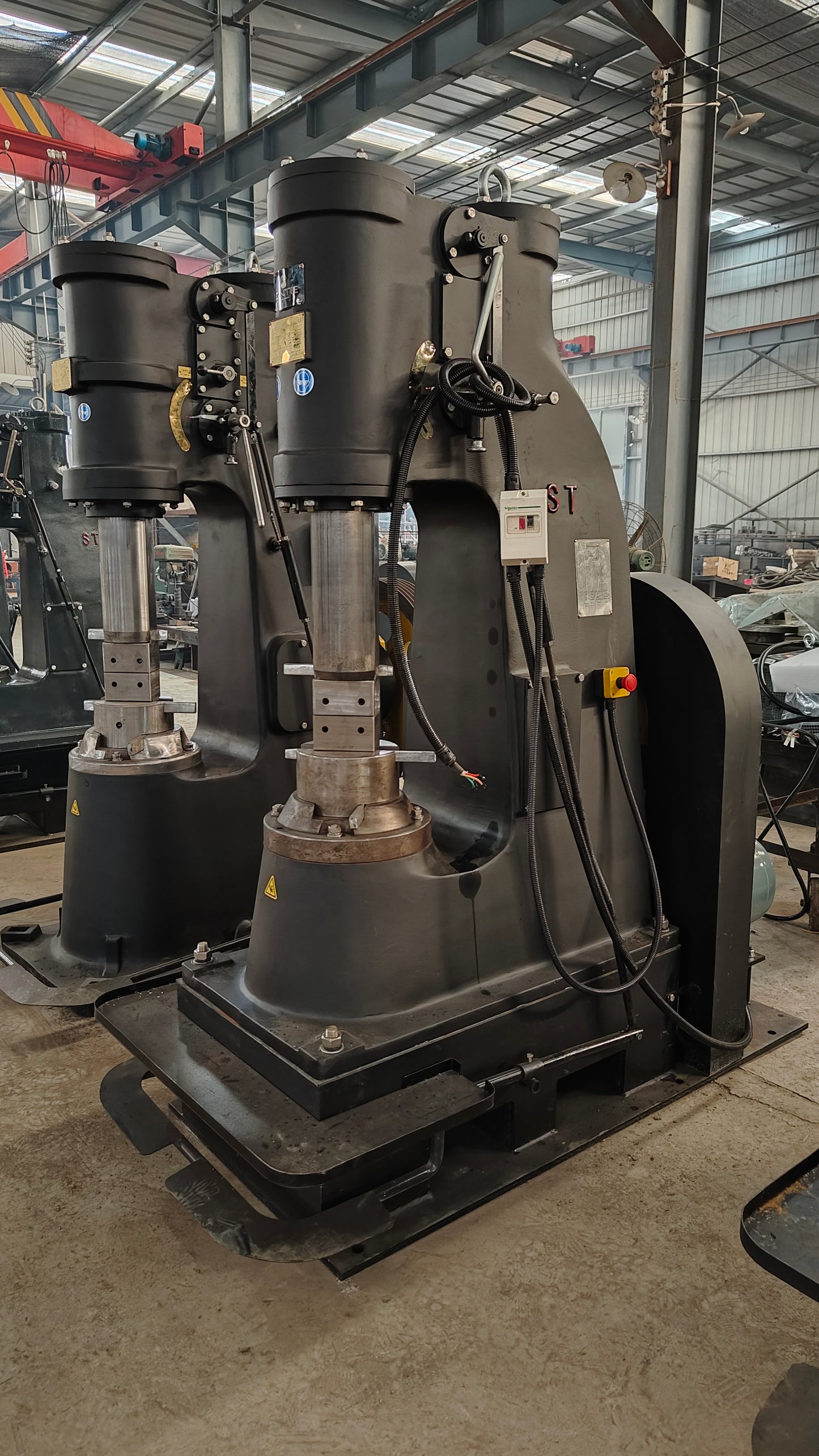

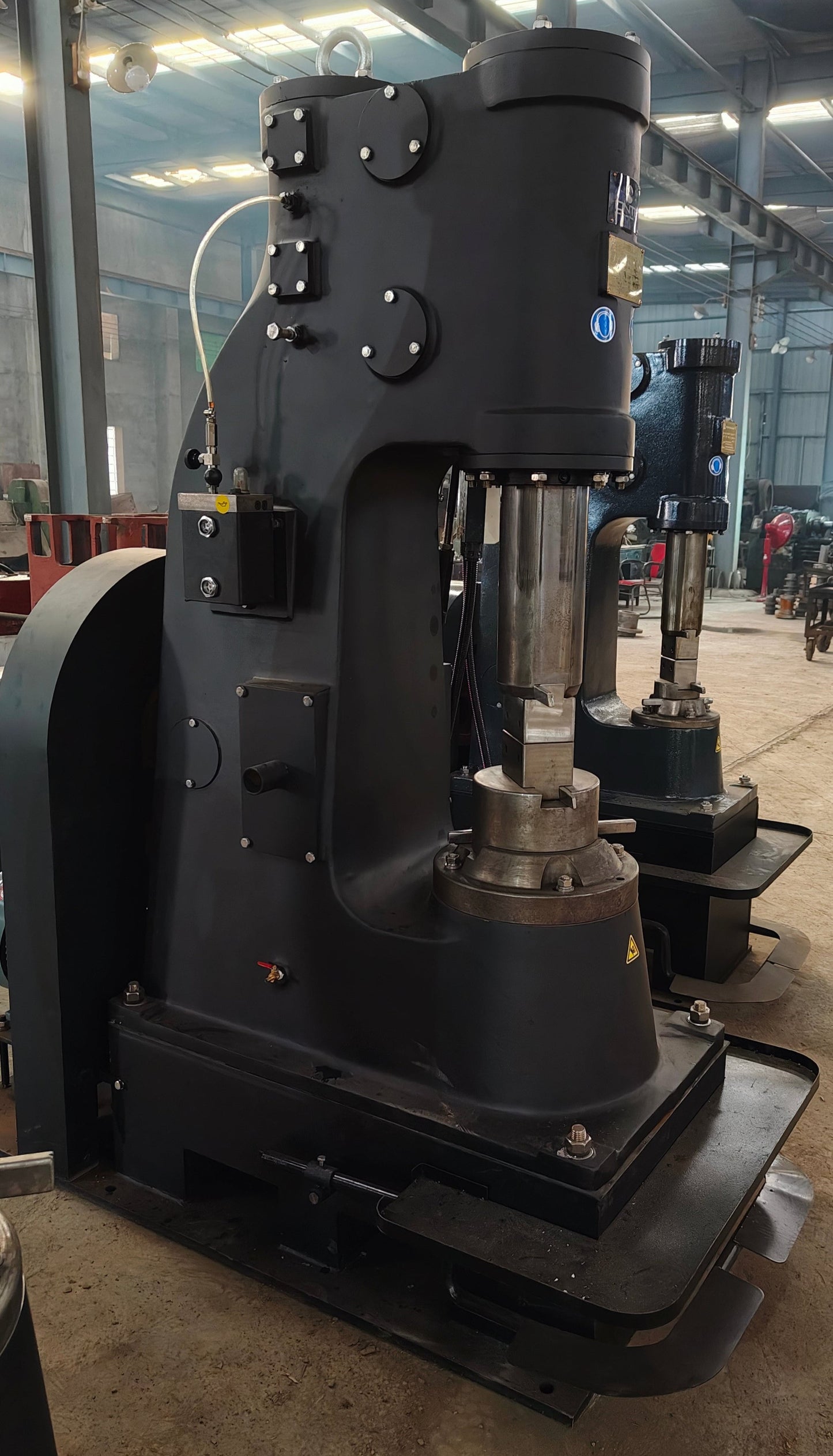

The Anyang ST 55 is a robust pneumatic forging hammer designed to deliver serious impact and precision in a compact, self-contained machine. Engineered for both industrial professionals and dedicated blacksmiths, the ST 55 offers exceptional control, efficiency, and versatility to tackle heavy-duty forging tasks with ease.
Overview
Powered by a reliable 7.5 kW motor, the Anyang ST 55 combines raw striking force with responsive control. Its self-contained design eliminates the need for an external air compressor, freeing up valuable workshop space while reducing maintenance demands and operational costs.
Key Features
- 55 kg Ram Force: Effortlessly forges steel sections up to 60x60 mm square or Φ75 mm round, providing reliable power for demanding projects.
- High Strike Rate: Delivers 230 blows per minute, enabling faster production without compromising precision.
- Precision Foot Pedal Control: Smooth, intuitive operation for everything from light finishing strikes to full-force blows.
- Compact, Self-Contained System: Space-saving design with no need for external compressors, streamlining setup and operation.
- Easy Installation: Features a top-mounted lifting eye and forklift points for straightforward, secure transport and setup.
Built for Safety and Versatility
The ST 55 incorporates enclosed V belts and flywheel for enhanced operator safety. Its interchangeable die system allows for quick, hassle-free changes between forging tasks, and custom die options are available to suit your specific needs. The hanging die feature further simplifies operation, keeping productivity high.
Low Maintenance, High Durability
Constructed with industrial-grade components, the Anyang ST 55 is built to withstand rigorous, long-term use. Its automatic, fully adjustable oiling system ensures optimal lubrication, minimizing wear and extending the machine's service life.

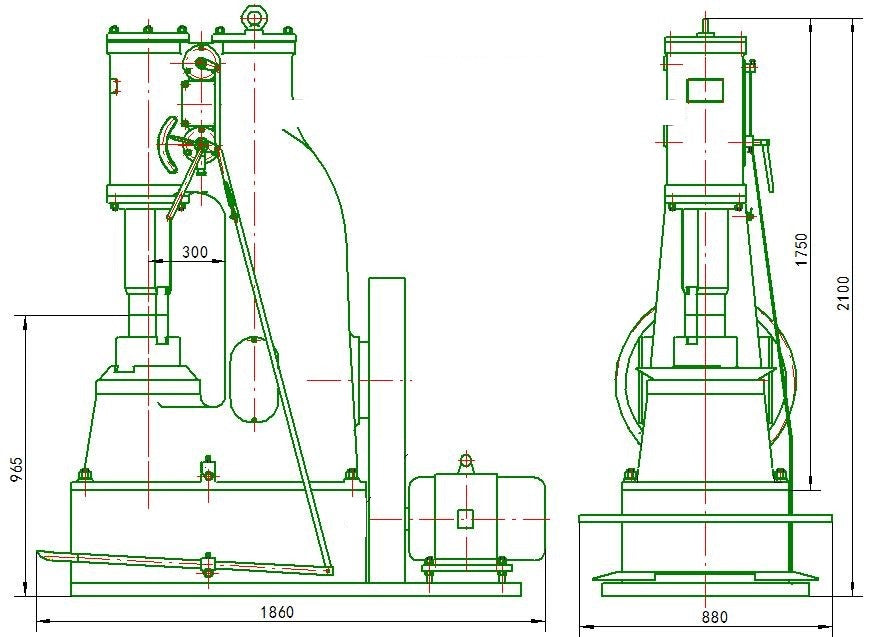

Specifications
| Specification | Details |
|---|---|
| Ram Weight | 55 kg (121 lb) |
| Hitting Frequency | 230 strikes per minute |
| Distance Between Dies | 270 mm |
| Throat Depth | 300 mm |
| Capacity (Square) | 60x60 mm |
| Capacity (Round) | Φ75 mm |
| Motor Power | 7.5 kW |
| Total Weight (Incl. Base) | 1,700 kg |
Take Your Forging to the Next Level
The Anyang ST 55 combines exceptional power with precise control, making it the perfect choice for workshops looking to boost productivity and efficiency. Whether you're working on heavy industrial tasks or fine-tuning detailed pieces, the ST 55 delivers consistent, professional results every time.
Add the Anyang ST 55 [121 lb] to your workshop and experience reliable, high-performance forging from day one.
